Product Summary
The DF11-EP2428PCF is a 2mm double-row connector.
Parametrics
DF11-EP2428PCF specifications: (1)Insulation Resistance: 1000M ohms min.; (2)Withstanding voltage: No flashover or insulation breakdown; (3)Contact Resistance: 30m ohms max.; (4)Single Insertion/Extraction Force: 0.3N (30gf) min., 4.4N(450gf) max.; (5)Vibration: No electrical discontinuity of 1μs or more; (6)Humidity (Steady state): Contact resistance: 30m ohms max. Insulation resistance: 500M ohms min.; (7)Temperature Cycle: Contact resistance: 30m ohms max. Insulation resistance: 1000M ohmsmin.; (8)Durability (Mating/un-mating): Contact resistance: 30m ohms max.; (9)Resistance to Soldering heat: No deformation of components affecting performance.
Features
DF11-EP2428PCF features: (1)Space-saving on Board Realized; (2)Broad Variation; (3)Applicable Wire Covers Wide Range; (4)The ID Type Connector Achieves Connection Work.

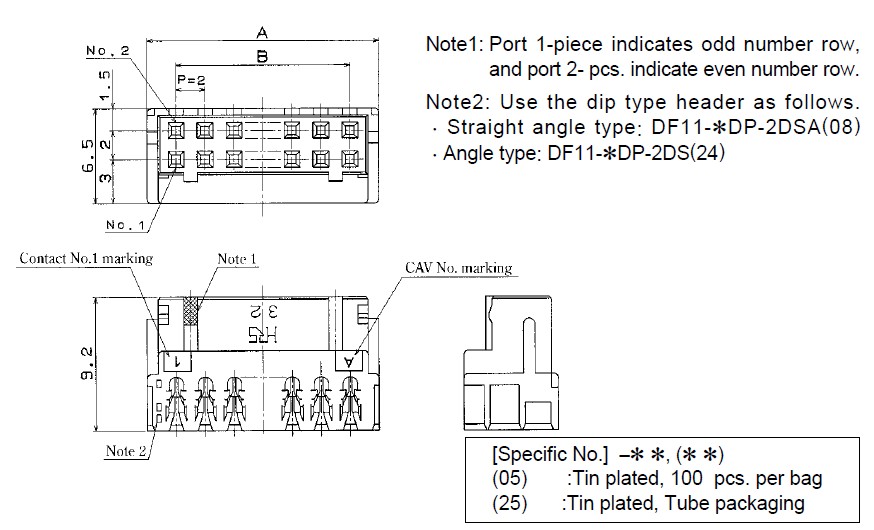

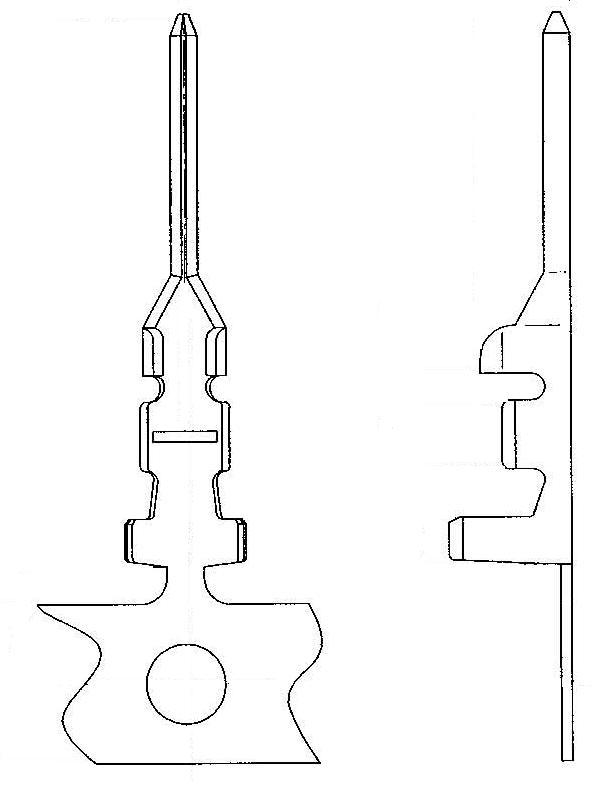

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DF11-EP2428PCF |
Hirose Connector |
Headers & Wire Housings MALE CONTACT TIN 24-28AWG REEL |
Data Sheet |
|
|
||||||||||
|
DF11-EP2428PCFA |
Hirose Connector |
Headers & Wire Housings MALE CONTACT GLD 24-28AWG REEL |
Data Sheet |
|
|
||||||||||
