Product Summary
The PIC18LF6722 is a 64-Pin, 1-Mbit, Enhanced Flash Microcontroller with 10-Bit A/D and nanoWatt Technology.
Parametrics
PIC18LF6722 absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200mA; (14)Maximum current sourced by all ports: 200 mA.
Features
PIC18LF6722 features: (1)High-Current Sink/Source 25 mA/25 mA; (2)Three Programmable External Interrupts; (3)Four Input Change Interrupts; (4)Enhanced Capture/Compare/PWM (ECCP) ; (5)C Compiler Optimized Architecture; (6)100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical; (7)1,000,000 Erase/Write Cycle Data EEPROM Memory Typical; (8)Flash/Data EEPROM Retention: 100 Years Typical; (9)Self-Programmable under Software Control; (10)Priority Levels for Interrupts; (11)8 x 8 Single-Cycle Hardware Multiplier; (12)Extended Watchdog Timer (WDT): Programmable period from 4 ms to 131s; (13)Single-Supply 5V In-Circuit Serial Programming (ICSP) via Two Pins; (14)In-Circuit Debug (ICD) via Two Pins; (15)Wide Operating Voltage Range: 2.0V to 5.5V; (16)Programmable Brown-out Reset (BOR) with Software Enable Option.

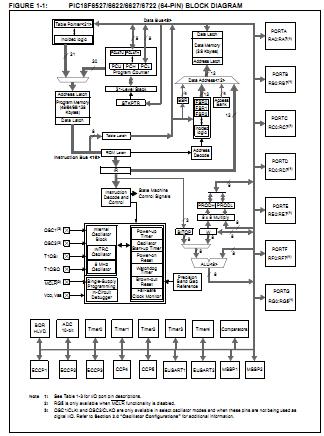

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC18LF6722-I/PT |
Microchip Technology |
8-bit Microcontrollers (MCU) 128 KB FL 4K RAM 70 I/O |
Data Sheet |
|
|
||||||||||||
|
PIC18LF6722T-I/PT |
Microchip Technology |
8-bit Microcontrollers (MCU) 128 KB FL 4K RAM 70 I/O |
Data Sheet |
|
|
||||||||||||
