Product Summary
The ES80C186EB20 is a 16-bit high-integration embedded processor. It has features that are new to the 80C186 family and include a STATIC CPU core, an enhanced Chip Select decode unit, two independent Serial Channels, I/O ports, and the capability of Idle or Powerdown low power modes.
Parametrics
ES80C186EB20 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temp under Bias: -65℃ to +120℃; (3)Supply Voltage with Respect to VSS: -0.5V to + 6.5V; (4)Voltage on other Pins with Respect to VSS: -0.5V to VCC + 0.5V.
Features
ES80C186EB20 features: (1)Integrate d Feature Set; (2)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (3)Speed Versions Available (5V): 20MHz; (4)Available in Extended Temperature Range (- 40℃ to + 85℃); (5)Low-Power Operating Modes; (6)Supports 80C187 Numeric Coprocessor Interface.

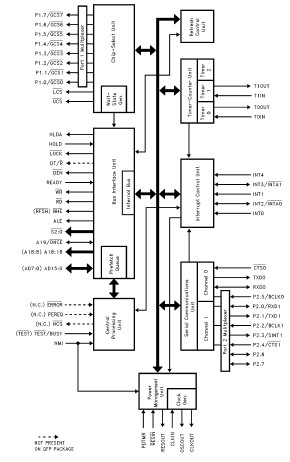

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

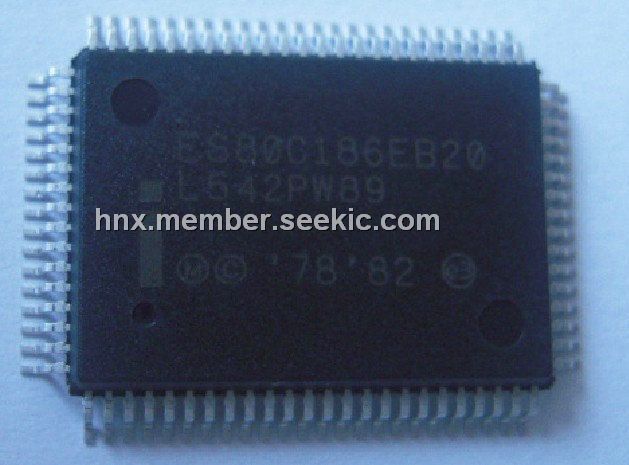

 ES80C186EB20 |
|
IC MPU 16-BIT 5V 20MHZ 80-MQFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
ES80C186EB13 |
|
IC MPU 16-BIT 5V 13MHZ 80-MQFP |
Data Sheet |
Negotiable |
|
||||
|
ES80C186EB20 |
|
IC MPU 16-BIT 5V 20MHZ 80-MQFP |
Data Sheet |
Negotiable |
|
||||
|
ES80C186EC20 |
|
IC MPU 16-BIT 5V 20MHZ 100-MQFP |
Data Sheet |
Negotiable |
|
||||
|
ES80C186XL20 |
|
IC MPU 16-BIT 5V 20MHZ 80-MQFP |
Data Sheet |
Negotiable |
|
||||
|
ES80C188EB20 |
|
IC MPU 16BIT 5V 20MHZ EXT 80QFP |
Data Sheet |
Negotiable |
|
||||
|
ES80C188EC20 |
|
IC MPU 16-BIT 5V 20MHZ 100-MQFP |
Data Sheet |
Negotiable |
|
||||
