Product Summary

The SN65HVD251DR is a CAN transceiver. It is intended for use in applications employing the Controller Area Network (CAN) serial communication physical layer in accordance with the ISO 11898 Standard. The SN65HVD251DR provides differential transmit capability to the bus and differential receive capability to a CAN controller at speeds up to 1 megabits per second (Mbps). The applications of the SN65HVD251DR include CAN Data Buses, Industrial Automation, SAE J1939 Standard Data Bus Interface, NMEA 2000 Standard Data Bus Interface, ISO 11783 Standard Data Bus Interface.

Parametrics

SN65HVD251DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.3 V to 7V; (2)Voltage range at any bus terminal (CANH or CANL): -36 V to 36 V; (3)Transient voltage per ISO 7637, pulse 1, 2, 3a, 3b CANH, CANL: ±200 V; (4)Input voltage range, VI (D, Rs, or R): -0.3 V to VCC + 0.5 V; (5)Electrostatic discharge All pins: 6 kV; (6)Charged-Device Model: 1 kV; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

SN65HVD251DR features: (1)Drop-In Improved Replacement for the PCA82C250 and PCA82C251; (2)Bus-Fault Protection of ±36 V; (3)Meets or Exceeds ISO 11898; (4)Signaling Rates up to 1 Mbps; (5)High Input Impedance Allows up to 120 SN65HVD251 Nodes on a Bus; (6)Bus Pin ESD Protection Exceeds 14 kV HBM; (7)Unpowered Node Does Not Disturb the Bus; (8)Low Current Standby Mode: 200 μA Typical; (9)Thermal Shutdown Protection; (10)Glitch-Free Power-Up and Power-Down Bus Protection For Hot-Plugging; (11)DeviceNet Vendor ID # 806.

Diagrams

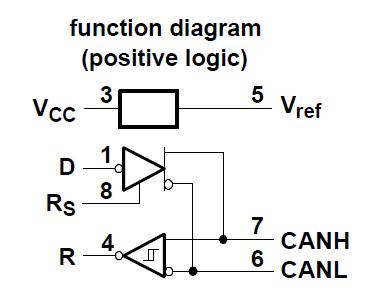

SN65HVD251DR diagram
