Product Summary
The ADM3101EACPZ transceiver is a high speed, single-channel RS-232/V.28 interface device that operates from a single 3.3 V power supply. Low power consumption make it ideal for battery-powered portable instruments. The ADM3101EACPZ conforms to the EIA-232E and CCITT V.28 specifications and operates at data rates up to 460 kbps. All RS-232 (TOUT and RIN) and CMOS (TIN and ROUT) inputs and outputs are protected against electrostatic discharges (up to ±15kV ESD Protection). This ensures compliance with IEC 1000-4-2 requirements. Applications of the ADM3101EACPZ include: General-purpose RS-232 data link, Portable instruments, Handsets, Industrial/Telecom Diagonictics Ports.
Parametrics
ADM3101EACPZ absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)V+: (VCC - 0.3 V) to +14 V; (3)V-: +0.3 V to –14 V; (4)Input Voltages TIN: -0.3 V to (V+, +0.3 V); RIN: ±30 V; (5)Output Voltages TOUT: ±15 V; ROUT: -0.3 V to (VCC + 0.3 V); (6)Short Circuit Duration TOUT: Continuous; (7)Operating Temperature Range Industrial (A Version): -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead-Free Temperature (Soldering, 10 s): 260℃.
Features
ADM3101EACPZ features: (1)460 kbps data rate; (2)1 Tx and 1 Rx; (3)Meets EIA-232E specifications; (4)0.1 μF charge pump capacitors; (5)ESD protection to IEC1000-4-2 (801.2); (6)on CMOS and RS-232 I/Os; (7)±8 kV: contact discharge; (8)±15 kV: air gap discharge.

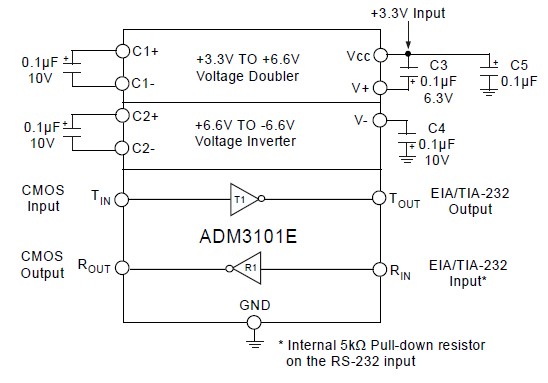

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM3101EACPZ-250R7 |
|
IC TXRX RS-232 3.3V 15KV 12LFCSP |
Data Sheet |
|
|
||||||||||||||||
|
ADM3101EACPZ-REEL |
|
IC TXRX RS-232 3.3V 15KV 12LFCSP |
Data Sheet |
|
|
||||||||||||||||
