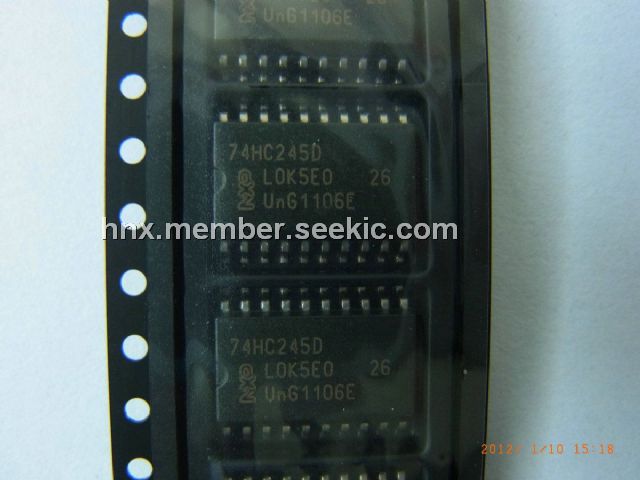

74HC245D

3-state octal bus tranceiver, 8BIT, 20SOIC, 6V, 7A, 74HC245D

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.09~0.15

PartNumber:: 74HC245D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-16

From Other Seller

Part Number:74HC245D
US $0.09 - 0.15
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

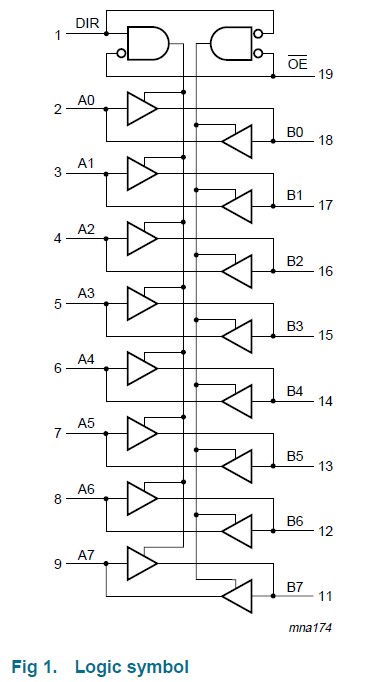

The 74HC245D is a 3-state octal bus tranceiver. The 74HC245D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). The 74HC245D is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HC245D features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated.

Parametrics

74HC245D absolute maximum ratings: (1)VCC supply voltage: -0.5 +7 V; (2)IIK input diode current VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA; (3)IOK output diode current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA; (4)IO output source or sink current. VO = -0.5 V to VCC + 0.5 V:±35 mA; (5)ICC, IGND VCC or GND current: ±70 mA; (6)Tstg storage temperature: -65 +150 ℃.

Features

74HC245D features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (6)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.
