Product Summary

The OPB742 is a reflecctive object sensor. The OPB742 consists of an infrared emitting diode and an NPN silicon phototransistor mounted side by side on converging optical axes in a black plastic housing. Various options of the OPB742 include choice of no windows, blue polysulfone windows for dust protection or opaque windows with offset openings for improved resolution.

Parametrics

OPB742 absolute maximum ratings: (1)Storage and Operating Temperature Range: -40 to +85℃; (2)Lead Soldering Temperature [1/16 inch (1.6 mm) from case for 5 sec. with soldering iron]: 240° C; (3)Input Diode Continuous Forward Current: 40 mA; (4)Input Diode Reverse Voltage: 2.0 V; (5)Input Diode Power Dissipation: 100 mW^2; (6)Output Phototransistor Collector-Emitter Voltage: 30 v; (7)Output Phototransistor Emitter-Collector Voltage: 5.0 V; (8)Power Dissipation: 100 mW.

Features

OPB742 features: (1)Focused for maximum sensitivity; (2)Phototransistor output; (3)PC board mounting.

Diagrams

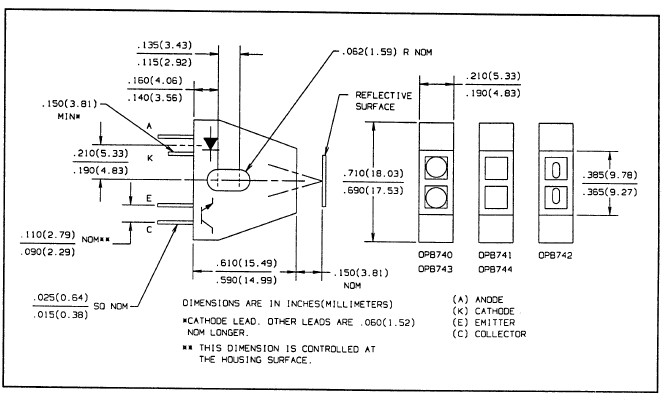

OPB742 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

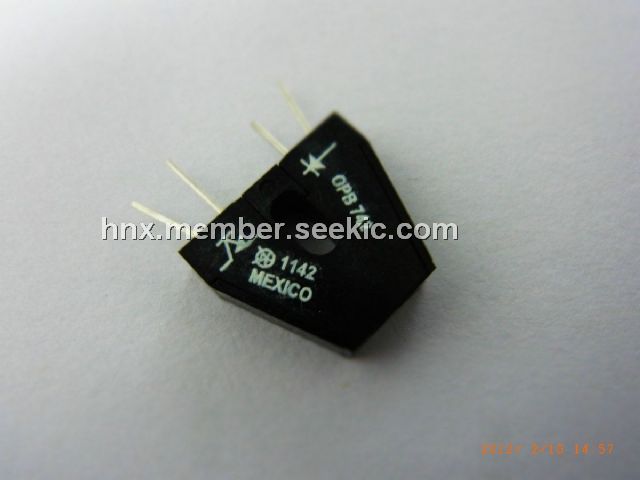

OPB742
OPB742
Optek
Optical Switches, Reflective, with Phototransistor Output EMMITER/SENSOR ASSEM
Data Sheet
0-1: $1.88
1-10: $1.64
10-100: $1.43
100-250: $1.34
