Product Summary

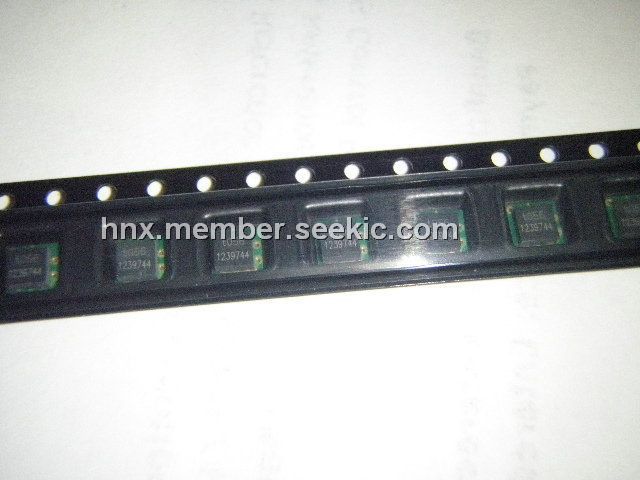

The ZEN056V130A24LSTR is a Polymer Protected Zener Diode. Applications include: Portable media players, Global positioning systems, Hard disk drives 5V & 12V bus, Solid State Drives (SSD) 5V bus, Cellphone charger port and USB power, Automotive peripheral input power, DC power port protection, Industrial handheld POS.

Parametrics

ZEN056V130A24LS absolute maximum ratings: Features: (1)Operating temperature range: -40℃ to +85℃; (2)Storage temperature: -40℃ to +85℃; (3)ESD withstand: 15kV Human body model; (4)Diode capacitance: 4200pF Typical @ 1MHz, 1V RMS; (5)Construction: RoHS compliant.

Features

ZEN056V130A24LS features: (1)RoHS compliant; (2)Overvoltage transient suppression; (3)Hold currents up to 2.3A; (4)Time delayed, overvoltage trip; (5)Time delayed, reverse bias trip; (6)Power handling on the order of 30 watts; (7)Integrated device construction.

Diagrams

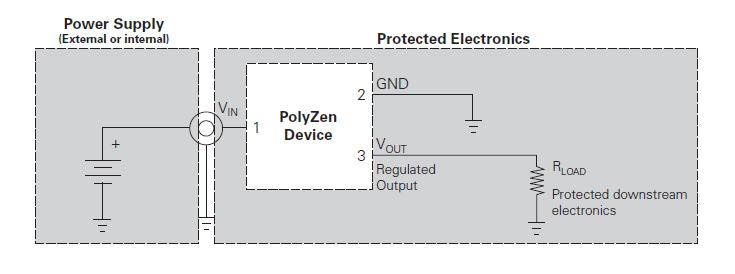

ZEN056V130A24LS diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ZEN056V130A24LS
ZEN056V130A24LS
TE Connectivity / Raychem
TVS Diodes - Transient Voltage Suppressors Poly Zen 1.3A 13
Data Sheet
0-1: $0.56
1-10: $0.55
10-100: $0.44
100-500: $0.38
ZEN056V130A24LS-TB
ZEN056V130A24LS-TB
TE Connectivity / Raychem
TVS Diodes - Transient Voltage Suppressors PolyZen Micro-Assem on Test Board
Data Sheet
0-1: $4.98
1-10: $3.57
10-100: $3.15
100-500: $3.12
