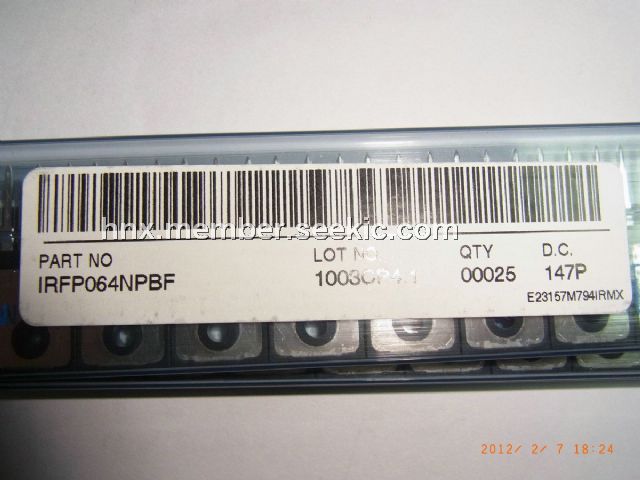

IRFP064NPBF

IRFP064NPBF, 55V, 110A, 0.008Ω, TO-247AC, power mosfet

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.20

PartNumber:: IRFP064NPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:IRFP064NPBF
US $1.00 - 1.20
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP064NPBF is a fifth generation HEXFET from International Rectifier utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFET is well known for, the IRFP064NPBF provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRFP064NPBF absolute maximum ratings: (1)Continuous drain current, VGS at 10V, ID at TC = 25℃: 110A; (2)Continuous drain current, VGS at 10V, ID at TC= 100℃: 80A; (3)Pulsed drain current, IDM: 390A; (4)Power dissipation, PD at TC= 25℃: 200W; (5)Linear derating factor: 1.3W/℃; (6)Gate-to-source voltage, VGS: ±20V; (7)Single pulse avanlanche energy, EAS: 480mJ; (8)Avalanche current, IAR: 59A; (9)Repetitve avalanche energy, EAR: 20mJ; (10)Peak diode recovery dv/dt, dv/dt: 5.0V/ns; (11)Operating junction and storage temperature range, TSTG: －55 to +175 ℃; (12)Soldering temperature, for 10 seconds: 300(1.6mm from case)℃; (13)Mounting torque, 6-32 or M3 srew: 10 lbf·in (1.1N·m).

Features

IRFP064NPBF features: (1)Advanced process technology; (2)Ultra low on-resistance; (3)Dynamic dv/dt rating; (4)175℃ operating temperature; (5)Fast switching; (6)Fully avalanche rated; (7)Lead-free.
