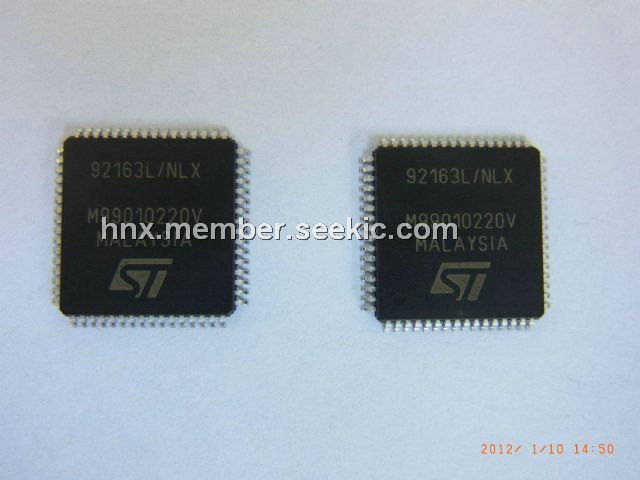

Product Summary
The ST92163 is an 8/16-bit full speed USB MCU for composite device. It is specifically designed for USB (Universal Serial Bus) applications. The ST92163’s performance derives from the use of a flexible 256-register programming model for ultrafast context switching and real-time event response. The intelligent on-chip peripherals offload the ST9 core from I/O and data management processing tasks allowing critical application tasks to get the maximum use of core resources. The ST92163 supports low power consumption and low voltage operation for power-efficient and low-cost embedded systems.
Parametrics
ST92163 absolute maximum ratings: (1)VDD Supply Voltage: –0.3 to +7.0 V; (2)VI Input Voltage: –0.3 to VDD +0.3 V; (3)VAI Analog Input Voltage (A/D Converter): VSS - 0.3 to VDD +0.3 V; (4)VO Output Voltage: –0.3 to VDD +0.3 V; (5)TSTG Storage Temperature: –55 to + 150 ℃; (6)IINJ Pin Injection Current Digital and Analog Input: -5 to +5 mA; (7)Maximum Accumulated Pin injection Current in the device: -50 to +50 mA; (8)AVDD A/D Converter Analog Reference: VDD -0.3 to VDD +0.3 V; (9)AVSS A/D Converter VSS: VSS -0.3 to VSS +0.3 V.
Features
ST92163 features: (1)Internal Memories: 20 Kbytes ROM/EPROM/OTP, 2 Kbytes RAM; (2)Register oriented 8/16 bit core; (3)224 general purpose registers available as RAM, accumulators or index pointers; (4)Minimum instruction cycle time: 167 ns (@24 MHz CPU frequency); (5)Low power modes: WFI, SLOW, HALT and STOP; (6)DMA controller for reduced processor overhead; (7)Full speed USB interface with DMA, compliant with USB specifications version 1.1 (in normal voltage mode); (8)USB Embedded Functions with 16 fully configurable endpoints (buffer size programmable), supporting all USB data transfer types (Isochronous included); (9)On-chip USB transceiver and 3.3 voltage regulator.

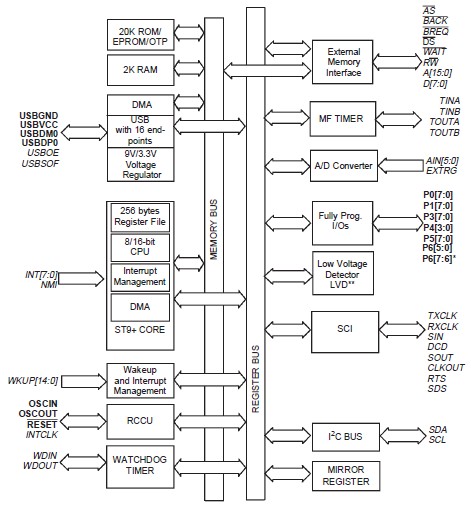

Diagrams
