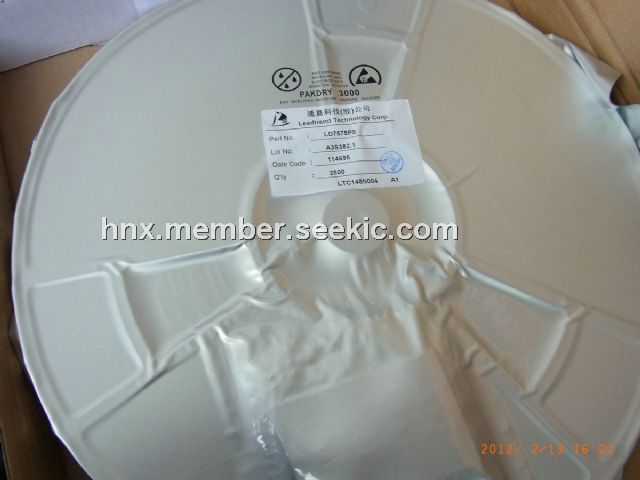

LD7575PS

LD7575PS, green-mode PWM controller, SOP8, 30V, 500mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.23 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.23

PartNumber:: LD7575PS

Brand:: Leadtrend Technology Corporation - Leadtrend | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:LD7575PS
US $0.20 - 0.23
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LD7575PS is a current-mode PWM controller with excellent power-saving operation. It features a highvoltage current source to directly supply the startup current from bulk capacitor and further to provide a lossless startup circuit. The integrated functions such as the leading-edge blanking of the current sensing, internal slope compensation, and the small package provide the users a high efficiency, minimum external component counts, and low cost solution for AC/DC power applications.The applications of the LD7575PS include switching AC/DC adapter and battery charger, open frame switching power supply, LCD monitor/TV power.

Parametrics

LD7575PS absolute maximum ratings: (1)Supply voltage VCC: 30V; (2)High-voltage Pin, HV: -0.3V to 500V; (3)COMP, RT, CS: -0.3 to 7V; (4)Junction temperature: 150℃; (5)Operating ambient temperature: -40℃ to 85℃; (6)Storage temperature range: -65℃ to 150℃; (7)Package thermal resistance: (SOP-8) 160℃/W; (8)Package thermal resistance: (DIP-8) 100℃/W; (9)Power dissipation (SOP-8, at ambient temperature = 85℃): 400mW; (10)Power dissipation (DIP-8, at ambient temperature = 85℃): 650mW; (11)Lead temperature (soldering, 10sec): 260℃; (12)ESd voltage protection, human body model (except HV Pin): 3KV; (13)ESD voltage protection, machine model: 200V; (14)Gate output current: 500mA.

Features

LD7575PS features: (1)High-voltage (500V) startup circuit; (2)Current mode control; (3)Non-audible-noise green mode control; (4)UVLO (under voltage lockout); (5)LEB (leading-edge blanking) on CS Pin; (6)Programmable switching frequency; (7)Internal slope compensation; (8)OVP (over voltage protection) on Vcc; (9)OLP (over load protection); (10)500mA driving capability.
