Product Summary

The IRFP450 is a power MOSFET. It is designed using the company’s consolidated strip layout-basedMESH OVERLAY process. This technology matches and improves the performances compared with standard parts from various sources. The applications of the IRFP450 are high current switching, uninterruptible power supply (ups), dc/dc coverters for telecom, industrial, and lighting equipment.

Parametrics

IRFP450 absolute maximum ratings: (1)Drain-source Voltage (VGS =0):500 V; (2)Drain- gate Voltage (RGS =20kΩ):500 V; (3)Gate-source Voltage:± 20 V; (4)Drain Current (continuous) at Tc =25℃:14A; (5)Drain Current (continuous) at Tc =100℃:8.7A; (6)Drain Current (pulsed):56 A; (7)Total Dissipation at Tc =25:190W; (8)Derating Factor:1.5 W/℃; (9)Peak Diode Recovery voltage slope 3.5 V/ns; (10)Storage Temperature -65℃ to 150℃; (11)Max. Operating Junction Temperature 150℃.

Features

IRFP450 features: (1)typical RDS(on) = 0.33Ω; (2)extremely high dv/dt capability; (3)100% avalanche tested; (4)very low intrinsic capacitances; (5)gatecharge minimized.

Diagrams

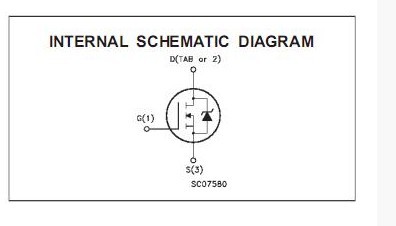

IRFP450 diagram
