Product Summary

The BD6290EFV-E2 is a bipolar stepping motor driver.

Parametrics

BD6290EFV-E2 absolute maximum ratings: (1)Supply voltage VM1,2: -0.2 to +36.0 V; (2)Power dissipation Pd: 1.1 W; (3)Input voltage for control pin VIN: -0.2 to +7.0 V; (4)Maximum input voltage for RNF VRNF: 0.5 V; (5)Maximum output current IOUT: 0.8 A/phase; (6)Operating temperature range Topr: -25 to +85 ℃; (7)Storage temperature range Tstg: -55 to +150 ℃; (8)Junction temperature Tjmax: +150 ℃.

Features

BD6290EFV-E2 features: (1)PWM constant current controllable two H bridge driver; (2)Full, Half, Quarter step; (3)Parallel IN control.

Diagrams

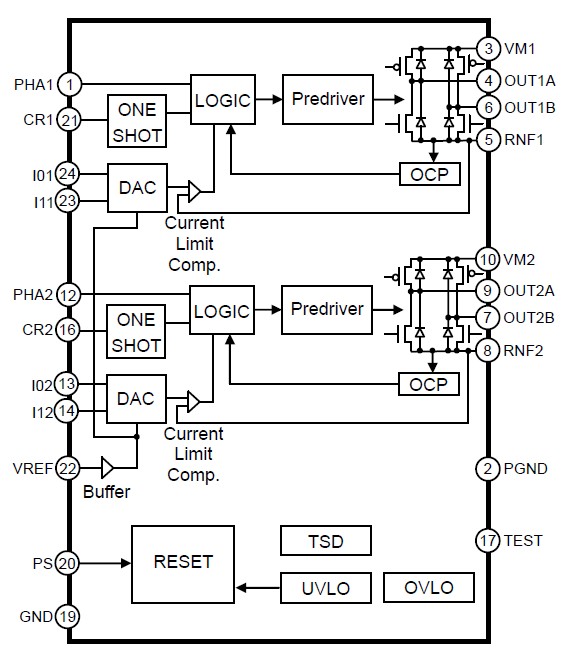

BD6290EFV-E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BD6290EFV-E2
BD6290EFV-E2
ROHM Semiconductor
Motor / Motion / Ignition Controllers & Drivers STEP MOTOR DRIVER 19-28V 0.8A
Data Sheet
0-1: $1.73
1-25: $1.39
25-100: $1.07
100-250: $1.03
