Product Summary

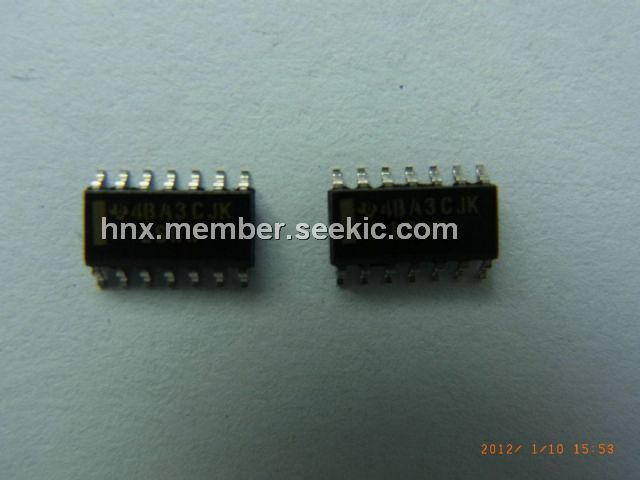

The 74LS00DR is an quadruple 2-input positive-nand gate.
Parametrics
74LS00DR absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Storage Temperature Range: -65 to +150℃.
Features
74LS00DR features: (1)VCC, Supply Voltage: 4.75 to 5.25 V, 5V typ; (2)VIH, HIGH Level Input Voltage: 2 V; (3)VIL, LOW Level Input Voltage: 0.8 V; (4)IOH, HIGH Level Output Current: -0.4 mA; (5)IOL, LOW Level Output Current: 16 mA; (6)TA, Free Air Operating Temperature: 0 to 70℃.

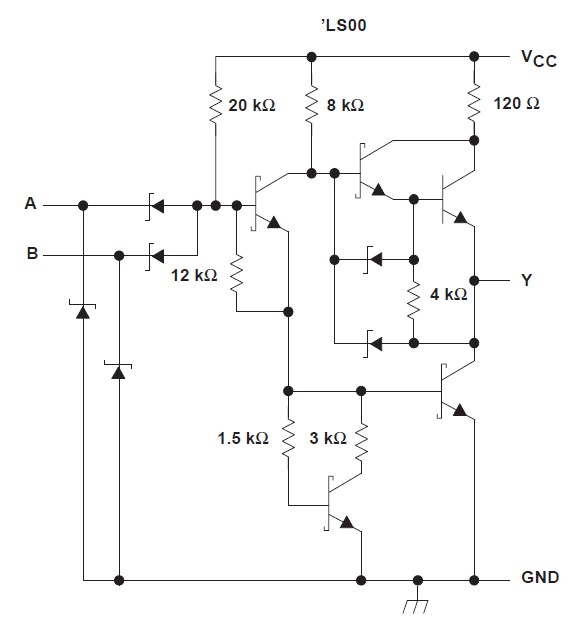

Diagrams
 |
