Product Summary

The AD823AR is a dual, 16 MHz, rail-to-rail FET input amplifier. The AD823AR is a dual precision, 16 MHz, JFET input op amp that can operate from a single supply of 3.0 V to 36 V or from dual supplies of ±1.5 V to ±18 V. The AD823AR has true single-supply capability with an input voltage range extending below ground in single-supply mode. Output voltage swing extends to within 50 mV of each rail for IOUT ≤ 100 μA, providing outstanding output dynamic range. Applications of the AD823AR include: Battery-powered precision instrumentation, Photodiode preamps, Active filters, 12-bit to 16-bit data acquisition systems, Medical instrumentation.

Parametrics

AD823AR absolute maximum ratings: (1)Supply Voltage: 36 V; (2)Internal Power Dissipation, PDIP (N): 1.3 W. SOIC (R):0.9 W; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±VS; (5)Storage Temperature Range N, R: -65℃ to +125℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Lead Temperature Range (Soldering, 10 sec): 300℃.

Features

AD823AR features: (1)Single-supply operation; (2)High load drive; (3)Excellent ac performance on 2.6 mA/amplifier; (4)Good dc performance; (5)Low distortion: 108 dBc worst harmonic @ 20 kHz; (6)Low noise: 16 nV/√Hz @ 10 kHz; (7)No phase inversion with inputs to the supply rails.

Diagrams

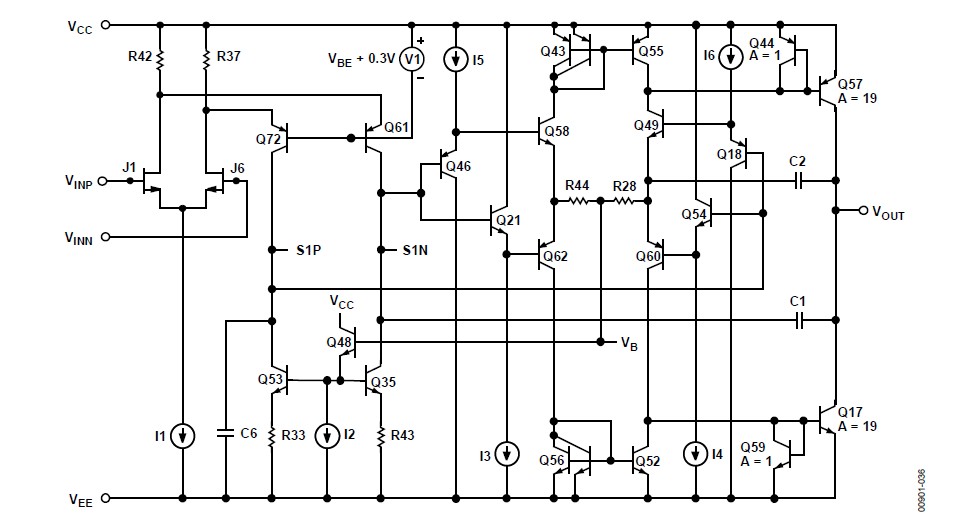

AD823AR diagram
