Product Summary
The SG-2BC is a reflective sensor. It combines a GaAs IRED with a high sensitivity phototransistor in a super-mini( 4φ) ceramic package,reducing installation space. The applications of the SG-2BC include: Timing sensors, Edge sensors, Micro floppy disk drives, Level sensors of liquid.
Parametrics
SG-2BC absolute maximum ratings: (1)Power dissipation PD: 75mW; (2)Reverse voltage VR: 5V; (3)Forward current IF: 50mA; (4)Pulse forward current IFP: 1A; (5)Collector power dissipation PC: 75mW; (6)Collector current IC: 20mA; (7)C-E voltage VCEO: 30V; (8)E-C voltage VECO: 3V; (9)Operating temp. Topr: -20 to +90℃; (10)Storage temp. Tstg: -30 to +100℃; (11)Soldering temp. Tsol: 260℃.
Features
SG-2BC features: (1)Compact (φ4 m m ); (2)High performance; (3)High-speed response; (4)Easy to mount on P.C.B.; (5)Widely applicable.

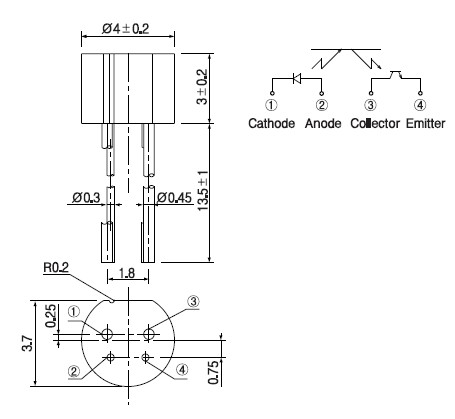

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SG-2BC |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
SG-203 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SG-209 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SG-2103 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
SG-210SCB 19.2000MF0 |
Epson Toyocom |
Standard Clock Oscillators 19.2MHz 3.3Volt 20ppm -10C +60C |
Data Sheet |
|
|
||||||||||||
|
SG-210SCB 25.0000ML3 |
Epson Toyocom |
Standard Clock Oscillators 25MHz 3.3Volt 50ppm -40C +85C |
Data Sheet |
|
|
||||||||||||
 |
SG-210SCD 62.5000ML3 |
|
OSCILLATOR 62.5000 MHZ 3.3V SMD |
Data Sheet |
|
|
||||||||||||
